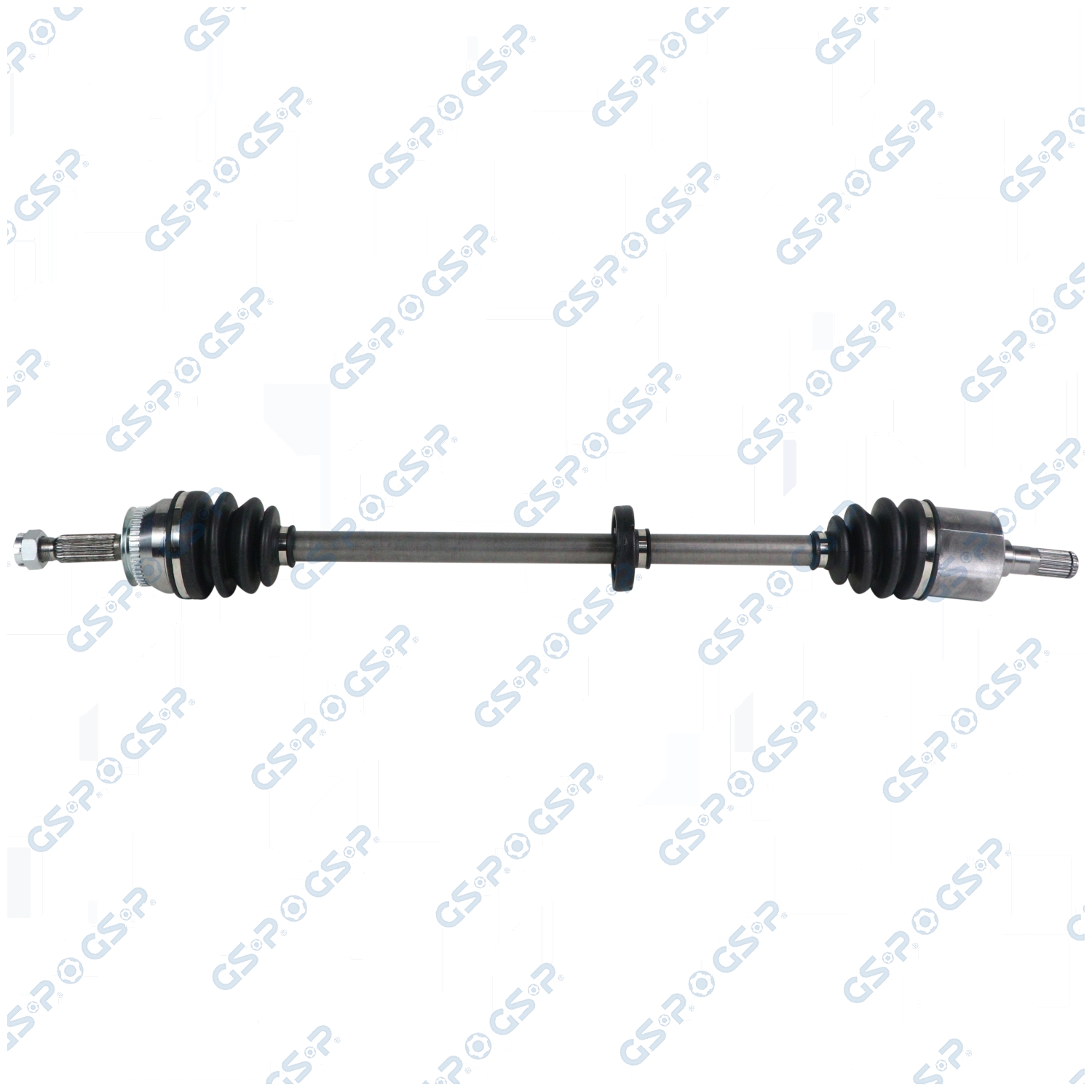

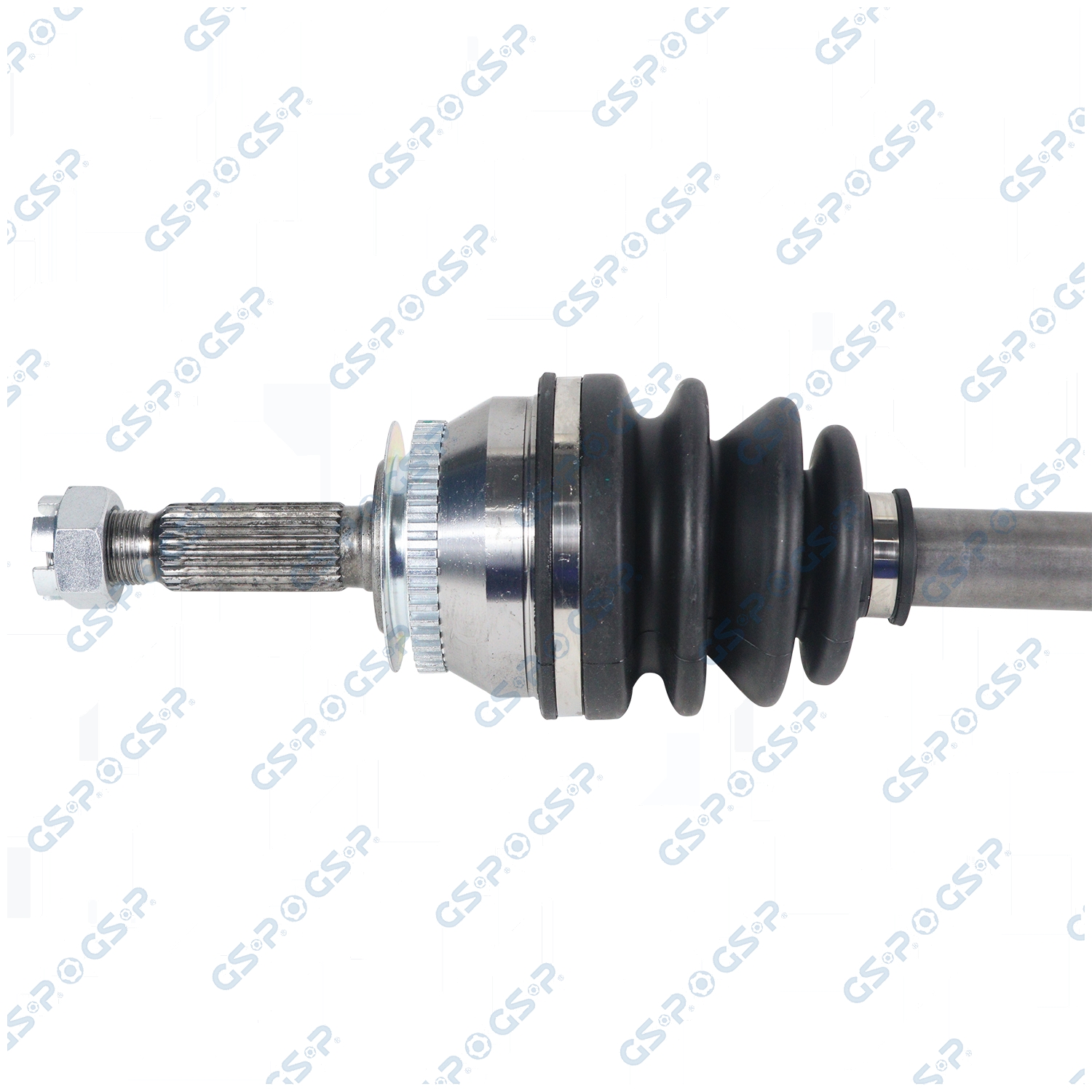

Hyundai, Kia (2.0) CV Axle Assembly - Front Right

Part Number:

224168

Product Type:

CV Components

SPECIFICATIONS

ABS Tone Ring Included

Yes

Axle Nut Included

Yes

Axle Nut Socket Size

31.5

Axle Nut Type

Hex

Compressed Length

926

Inboard Spline Quantity

25

Outboard Spline Quantity

25

ABS Tone Ring Tooth Quantity

44

Axle Nut Length

21

Axle Nut Thread Size

M22×1.5

Boot Material

Neoprene

Inboard Joint Type

Male

Outboard Joint Type

Conventional

FEATURES & BENEFITS

APPLICATIONS

Year Range
Make
Model
SubModels
Position
2005-2009
Kia
Spectra
Front Right
2005-2009
Kia
Spectra5
Front Right
2004-2004
Kia
Spectra
Front Right
2000-2001
Hyundai
Tiburon
Front Right
1999-2000
Hyundai
Elantra
Front Right
